Roller Press

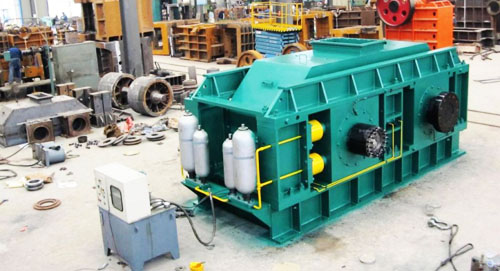

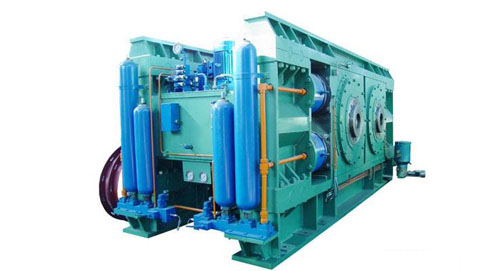

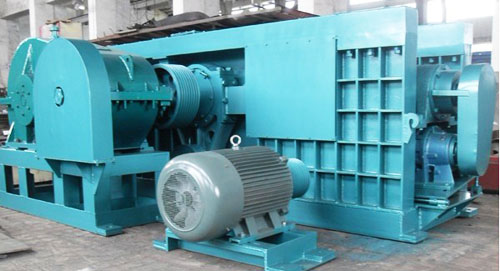

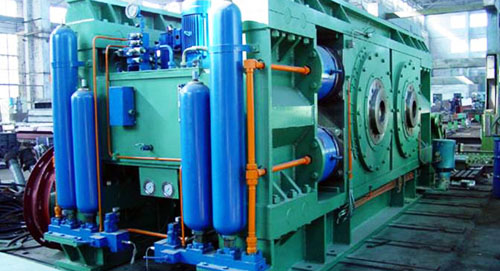

Roller Press

Roller press is new cement saving energy grinding equipment and developed in the middle of 1980s, can replace the system of ball mill competently or in partial, it is characterized by low consumption and lower noise, also reform the old factory. After selecting the equipment, may increase output of

We're here to help Easy ways to get the answers you need. Contact Now
  • Roller Press
  • Roller Press
  • Roller Press
  • Roller Press
Roller press is new cement saving energy grinding equipment and developed in the middle of 1980s, can replace the system of ball mill competently or in partial, it is characterized by low consumption and lower noise, also reform the old factory. After selecting the equipment, may increase output of 40-100% for ball mill, fine material of 0.08mm covers 20-55%after material cake is pressed, less than 2mm covers 65-85%, Internal structure of fine material is filled with many small cracks, the grind ability is improved greatly. The roller surface is used heat built-up welding; It is convenient to maintain the abrasive layer.

With our Roller Presses, the grinding pressure is transferred from the hydraulic system via the movable roll to the material bed and absorbed in a stable, closed machine frame. A key feature is the mounting of the rollers in oil lubricated cylindrical roller bearings. The oil is both, lubricant and cooling agent. Alternatively, grease lubrication is possible. Power transmission from the electric motors is effected via cardan shaft, fluid or safe set coupling and clamping disc fitted gear boxes, usually of planetary design. Depending on the application, the rollers are either one piece solid construction or shaft and tire design with suitable wear protection for almost all applications in the cement and minerals industry.

S.N

Model

Roller
Diameter
(mm)

Width
of Roller
(mm)

Feeding Size
(mm)

Output Size
(mm)

Capacity
(t/h)

Power
(kw)

Way
of Protection

1

2PGY1206

1200

600

<50

<4

120-180

185*2

Hydraulic System

2

2PGY1208

1200

800

<50

<4

150-240

200*2

3

2PGY1406

1400

600

<60

<4

240-295

250*2

4

2PGY1409

1400

900

<60

<4

290-360

280*2

5

2PGY1609

1600

900

<70

<4

340-500

315*2

6

2PGY1612

1600

1200

<70

<4

400-610

355*2

7

2PGY1812

1800

1200

<80

<4

620-750

500*2
