Introduction:

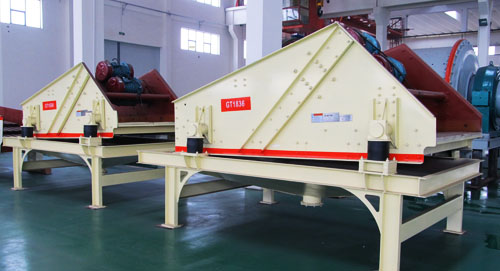

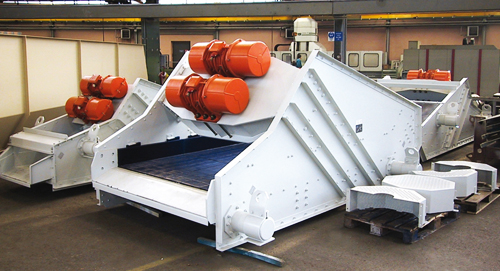

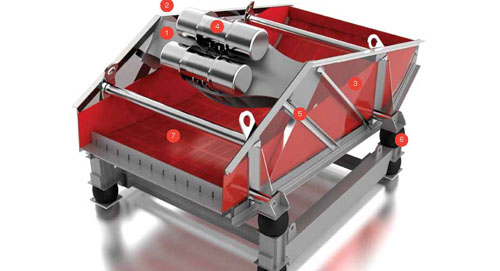

Dewatering Screen is mainly used in the dehydration of coarse, middle, and fine particles. Our dewatering screens offer multiple advantages for construction and specialty aggregates producers including a drier, drip-free product that other types of equipment cannot provide.

There are many applications for Dewatering Screens in the aggregates market including dewatering after Sand Classifying Tanks and Fine Material Screw Washers, or use within a system such as the Recipe Sand Plant.

Model	Screen  Size	Screen  Surface  Layer	Sieve  Hole  Size	Feeding  Size	Handling  Capacity	Motor  Power	Weight	Vibration  Frequency	Sieve Inclination Angle	Overall Dimension
	Length ×Width	Layer	mm	mm	(t/h)	kw	kg	(Hz)	°	L×W×H (mm)
ZSM1230	3000×1200	1	4-50	≤200	10-50	5.5×2	2250	16	15	3800×2050×1920
2ZSM1230	3000×1200	2	4-50	≤200	10-50	5.5×2	3345	16	15	3800×2050×2200
ZSM1530	3000×1500	1	5-50	≤200	20-100	5.5×2	5836	16	15	4800×3140×2814
2ZSM1530	4800×1500	2	5-50	≤200	20-100	5.5×2	6900	16	15	4799×3140×3014
ZSM1848	4800×1800	1	5-50	≤300	50-500	7.5×2	6489	16	15	4799×3440×2814
2ZSM1848	4800×1800	2	5-50	≤300	50-500	7.5×2	7750	16	15	4799×3440×3014
ZSM1860	4800×1800	1	5-50	≤200	50-500	11×2	8300	16	15	4799×3440×3503
2ZSM1860	6000×1800	2	5-150	≤300	80-600	11×2	9950	16	15	6000×3440×3326
