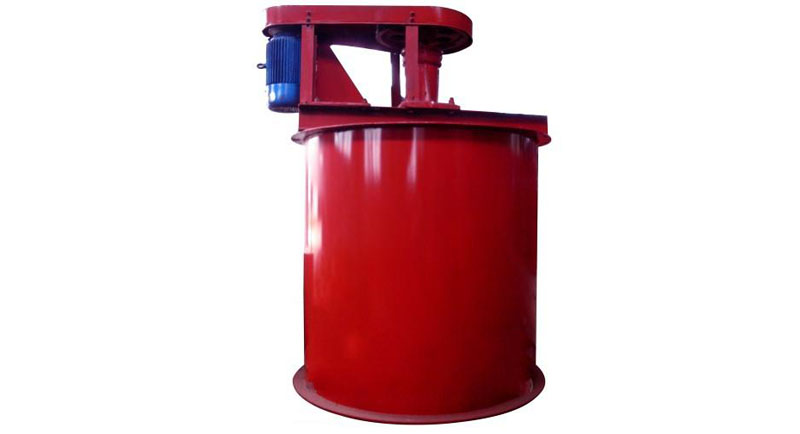

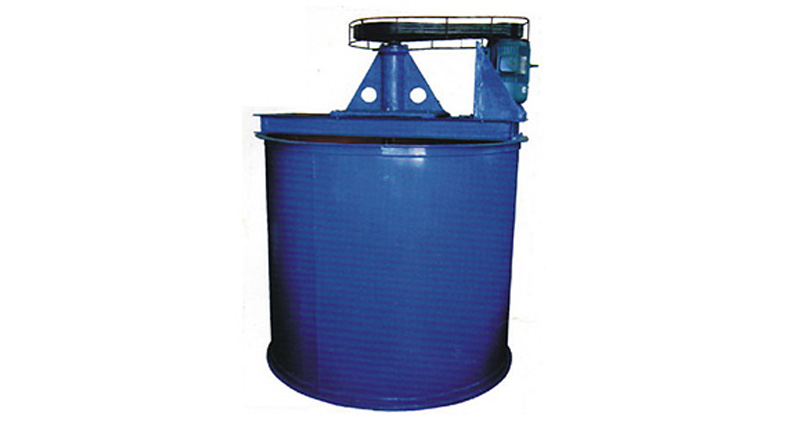

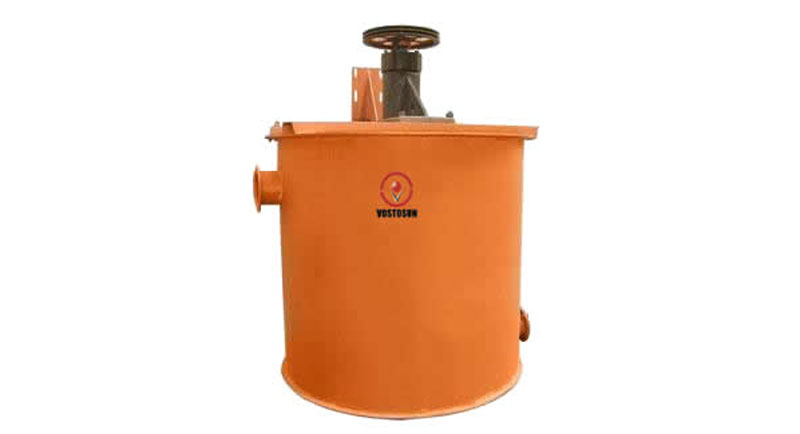

Blender is mainly used to mix slurry before flotation in the beneficiation process.  It can mix drug and slurry completely. It is suitable to mix slurry with density smaller than 30 % (weight ratio) and size smaller than 1mm.

V-belt of motor drives impeller to mix drug and slurry completely. This machine can increase reaction time and strengthen reaction quality of the drug.

Model	Internal diameter (mm)	Internal Height (mm)	Volume (m3)	Impeller speed (r/min)	Impeller diameter (mm)	Weight (t)	Motor power		Dimension (LxWxH)(mm)
							Model	Power(KW)
XB-500	500	500	0.098	600	200	0.15	Y90S-6	1.1	600×566×954
XB-750	750	750	0.33	530	255	0.6	Y90L-4	1.5	1131×880×1241
XB-1000	1000	1000	0.58	530	255	0.99	Y90L-4	1.5	1131×1130×1492
XB-1200	1200	1200	1.4	300	400	1.05	Y132S-6	3	1500×1480×1800
XB-1500	1500	1500	2.2	320	400	1.2	Y132S-6	3	1750×1640×2190
XB-2000	2000	2000	5.46	230	550	1.6	Y132M2-6	5.5	2380×2162×2850
XB-2500	2500	2500	11.2	230	650	3.44	Y160L-6	11	3036×2716×3543
XB-3000	3000	3000	19.1	210	700	4.61	Y225S-8	18.5	3604×3216×4250
XB-3500	3500	3500	30	230	850	7.28	Y225M-8	22	3940×3766×5386
