Jigging Machine-2LTC-6109/8T

Jigging Machine-2LTC-6109/8T

Introduction: Jigging machine of 2LTC-6109/8T is widely used in mineral dressing or beneficiation system for kinds of ores like hematite, limonite, sand gold ore, manganese ore, tungsten ore, tin ore, Ta-Nb mineral, mercury ore, fluorite ore, barite ore, the azure quarries and so on. It can be also

We're here to help Easy ways to get the answers you need. Contact Now

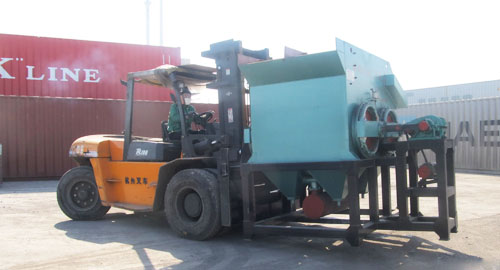

  • Jigging Machine-2LTC-6109/8T

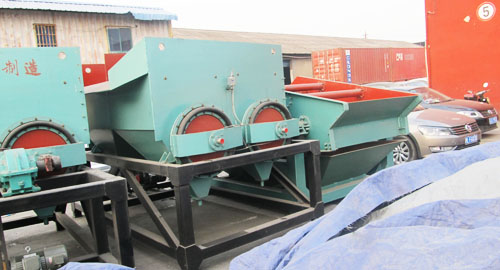

  • Jigging Machine-2LTC-6109/8T

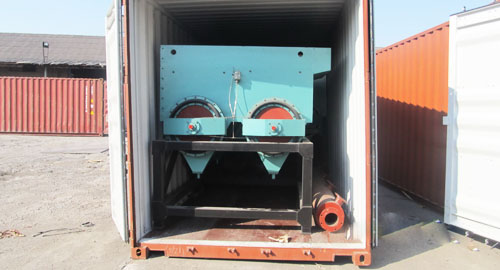

  • Jigging Machine-2LTC-6109/8T
  • Jigging Machine-2LTC-6109/8T
Introduction:
Jigging machine of 2LTC-6109/8T is widely used in mineral dressing or beneficiation system for kinds of ores like hematite, limonite, sand gold ore, manganese ore, tungsten ore, tin ore, Ta-Nb mineral, mercury ore, fluorite ore, barite ore, the azure quarries and so on. It can be also used to recovery metals or alloy particles from kinds of smelting slag like silica-manganese slag, ferro-manganese slag, nickel slag, steel iron slag, sulfate slag.

Working principle:
2LTC-6109/8T jigger is kind of side-moving rectangle jigger with two rows and four chambers. Motor drives reduction gears moving by the transmission. There are eccentric adjusting devices at both output ends of the reduction gears. The eccentric adjusting device drive the connecting rod after adjusting to drive the driving pan to do the alternation motion extruding the liquid in the cell body and promoting waves. The waving water moves through the screen to impact the ore on the screen making the ore in the state of free-failing body in the liquid. The ore grains own different dropping speed in the liquid because of the different density, so the ore will separate naturally. Finally, the heavier ore will be discharged out of the cell body after the adjustment and the lighter ore floats the waste-discharging mouth to be discharged and the whole ore beneficiation process is finished.

Advantages:
1. Energy-saving, high enrichment efficiency and environmental-friendly.
2. Trapezoid Working area, high recovery rate, and large handling capacity.
3. Eight jig dressing chambers, adjustable stroke and stroke frequency for each slot, wide range of selected particle size.
4. High stability, simple operation, convenient maintenance.
Model Section
Form
Column
No.
Jigging
Chamber
No.
Jigging
Area
(㎡)
Stroke
Coefficient
Stroke
(mm)
Stroke
Frequency
(times/min)
Handling
Capacity
(T/h)
Power
(KW)
2LTC366/8T Trapezoid 2 8 2.16 0.68-0.41 0-50 120-300 3-6 1.1*2
2LTC6109/8T Trapezoid 2 8 5.76 0.52-0.35 0-50 120-300 20-30 1.5*4
