Spiral Classifier

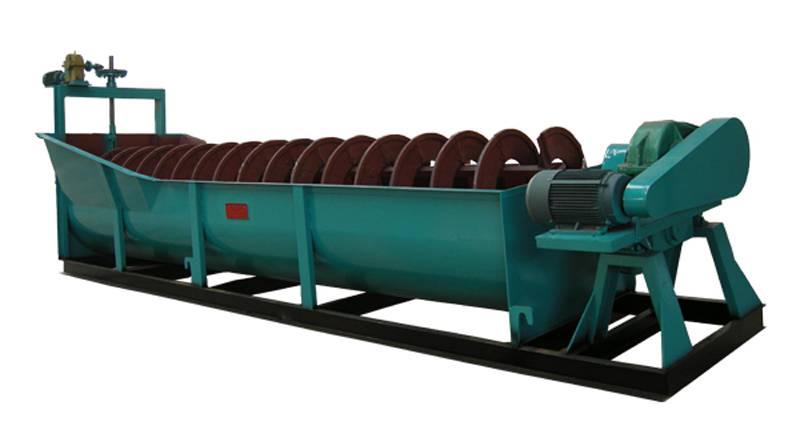

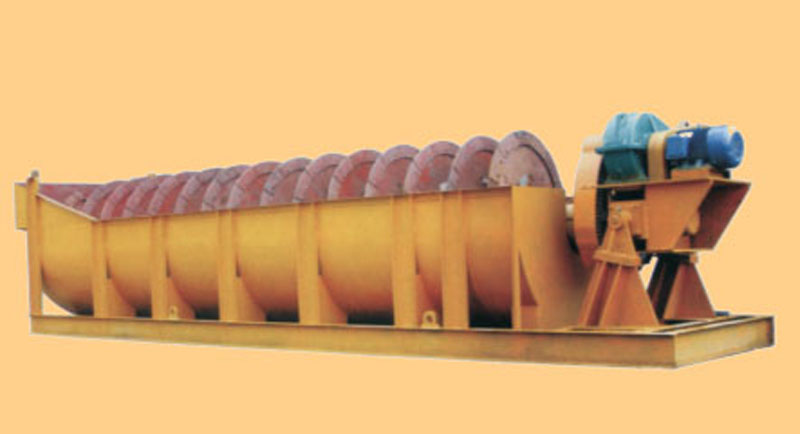

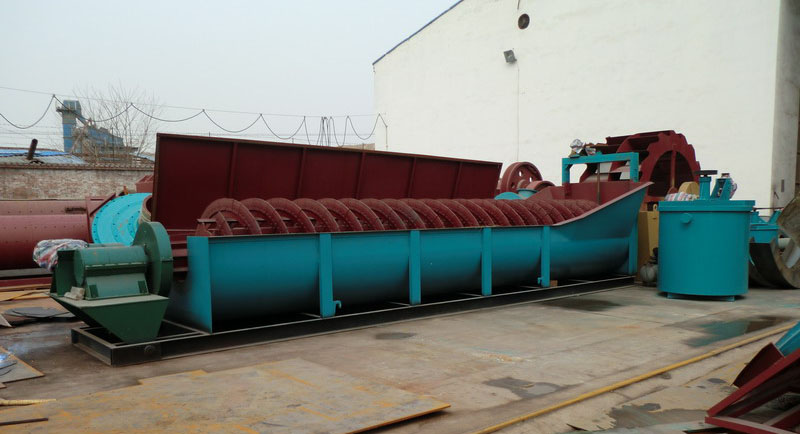

Spiral Classifier

Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process. This machine has features of simple structure, reliable and convenient operation,

We're here to help Easy ways to get the answers you need. Contact Now
  • Spiral Classifier
  • Spiral Classifier
  • Spiral Classifier
  • Spiral Classifier
Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process.  This machine has features of simple structure, reliable and convenient operation, etc.
Model Spiral diameter（mm） Speed of Spiral(r/min) Capacity Slope(°) Power(KW) Weight(t)
Sand Return (t/h) Overflow (t/h)
FLG500 500 8-15.5 6-11 32 12-18 3 1.9
FLG750 750 4.5-10 11-24 65 12-18 3 2.7
FLG1000 1000 1.6-7.4 25-45 110 12-18 5.5 4.1
FLG1200 1200 5-7 50-80 155 12-18 5.5 7.5
FLG1500 1500 2.5-6 70-115 235 12-18 7.5 10.5
FLG1800 1800 2.5-6 100-190 310 12-18 11 17.1
FLG2000 2000 2.5-6 160-230 400 12-18 15 19.3
