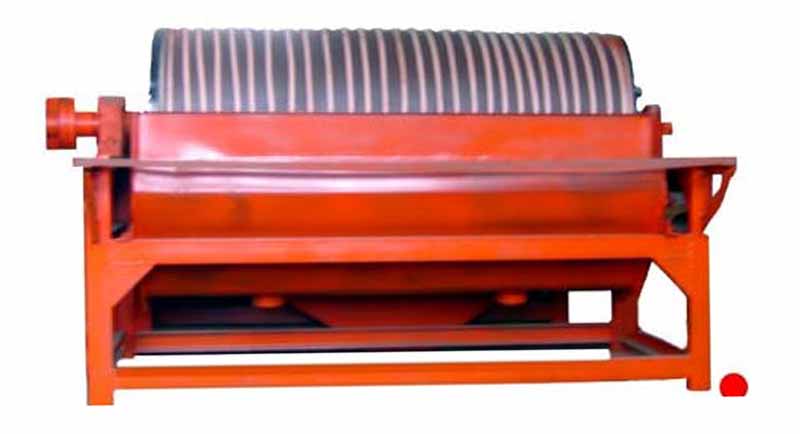

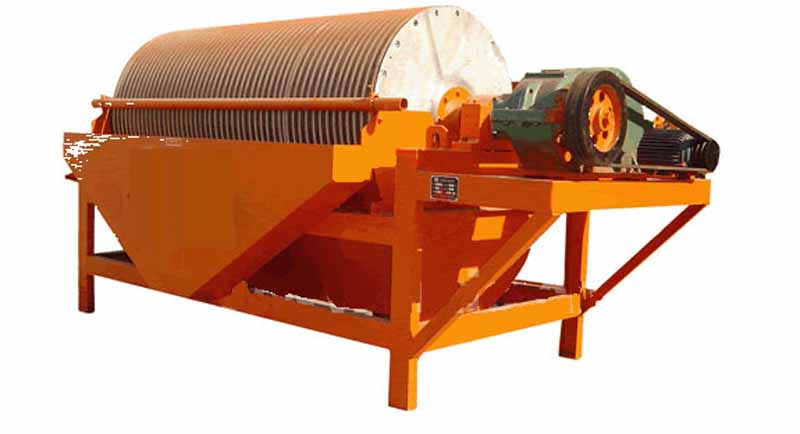

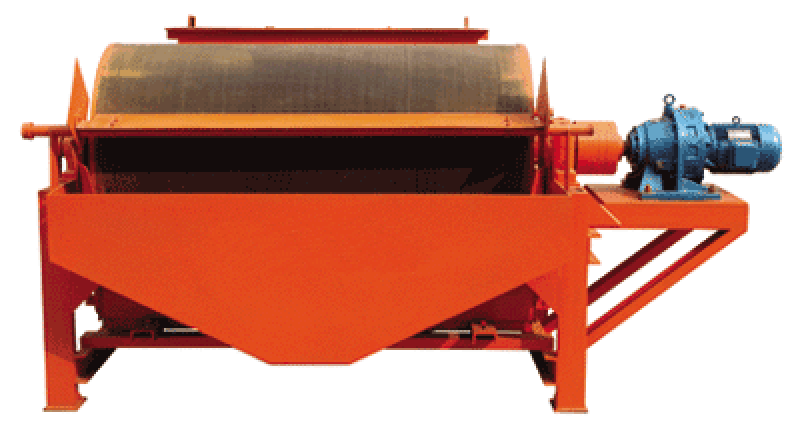

Magnetic Separator

Magnetic Separator

This is a new mine selection machine which is developed in the recent 20 years, mainly used in thin grade ferromagnetism mineral dry and wet separating. Magnetic Separator has good features such as high capacity, good quality, easy to be repaired, easy to be transported.

We're here to help Easy ways to get the answers you need. Contact Now
  • Magnetic Separator
  • Magnetic Separator
  • Magnetic Separator
  • Magnetic Separator
This is a new mine selection machine which is developed in the recent 20 years, mainly used in thin grade ferromagnetism mineral dry and wet separating. Magnetic Separator has good features such as high capacity, good quality, easy to be repaired, easy to be transported.
Model Diameter(mm) Length of drum(mm) Speed(r/min) Feeding size(mm) Capacity (t/h) Power (kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
