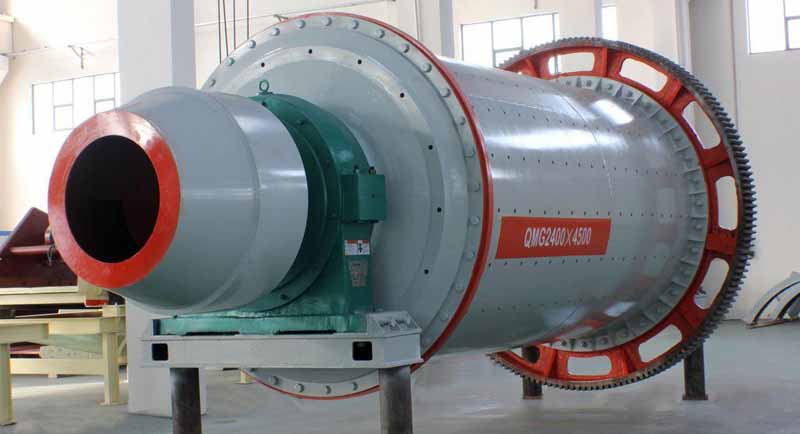

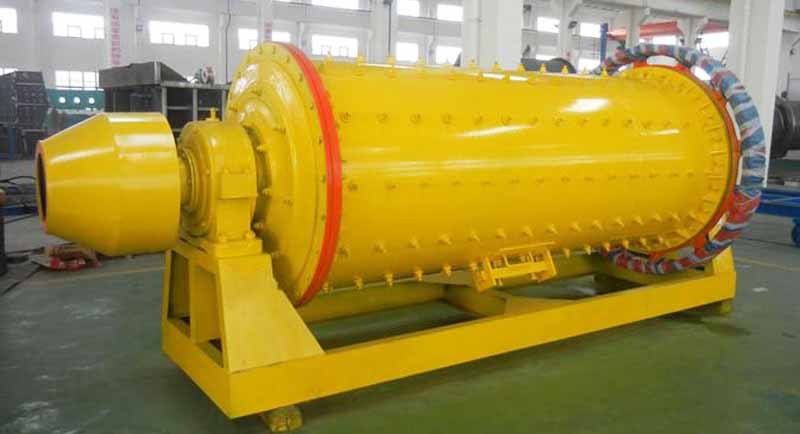

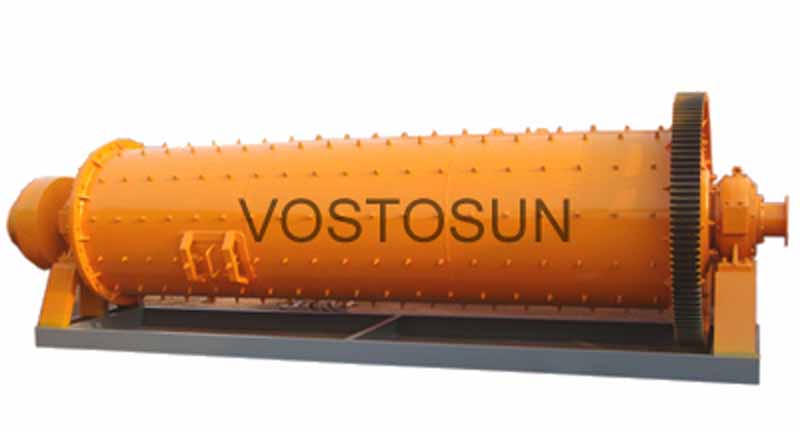

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type according to different ways of discharging materials.

Our ball mills can satisfy different requirements, and have excellent features such as low consumption, high capacity per hour, and no pollution to the environment around, easy to be repaired.

We have the good service to our customers, if they can't install the machines, we can send our technician to their location, and install for you. We make every endeavor to satisfy our customers.

Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model	Speed(r/min)	Max. weight of balls(t)	Input size(mm)	Output size(mm)	power(kw)	Capacity(t/h)	Weight(t)
Φ900×1800	37	1.8	≤15	0.075-0.89	15	0.5-2	3.4
Φ900×2100	37	2.3	≤15	0.075-0.4	18.5	0.4-2	3.9
Φ900×3000	35	3.85	≤25	0.075-0.4	30	1.1-2.5	7.78
Φ1200×2400	35	4.6	≤25	0.075-0.4	30	1.3-3.2	8.65
Φ1200×2800	35	5.4	≤25	0.075-0.4	37	1.5-3.7	10.02
Φ1200×4500	35	8.6	≤25	0.075-0.4	45	2.7-6.79	14
Φ1500×3000	29	9	≤25	0.047-0.4	75	3.3-8.2	14.12
Φ1500×3500	29	10.5	≤25	0.047-0.4	75	3.3-8.5	15.64
Φ1500×4500	29	13.5	≤25	0.047-0.4	90	4.5-12	20
Φ1500×5700	29	17	≤25	0.047-0.4	110	2.6-14	21.5
Φ1830×3000	24	13.5	≤25	0.047-0.4	135	4-15	28
Φ1830×3600	24	14	≤25	0.047-0.4	135	4-15	29
Φ1830×4500	24	20	≤25	0.047-0.4	155	4-19	32
Φ1830×7000	24	31.5	≤25	0.047-0.4	210	6-22	36.5
Φ2100×3000	22	18	≤25	0.047-0.4	210	6.4-28	40.79
Φ2100x3600	22	20	≤25	0.047-0.4	210	7-28	42
Φ2100×4000	22	21.5	≤25	0.047-0.4	210	7.6-28	43.45
Φ2200×3600	21.7	25	≤25	0.047-0.4	245	5.2-32	44
Φ2200×7000	21.7	46	≤25	0.047-0.4	380	15-38	63
Φ2400×3600	21	28	≤25	0.047-0.4	320	8-60	47
Φ2400×4500	21	35	≤25	0.047-0.4	380	8.5-60	70.5
Φ2700×3600	20.7	40	≤25	0.047-0.4	400	12-80	75.5
Φ2700×4500	20.7	48	≤25	0.047-0.4	430	12-90	102
Φ3200×4000	18	65	≤25	0.047-0.4	800	30-180	137
