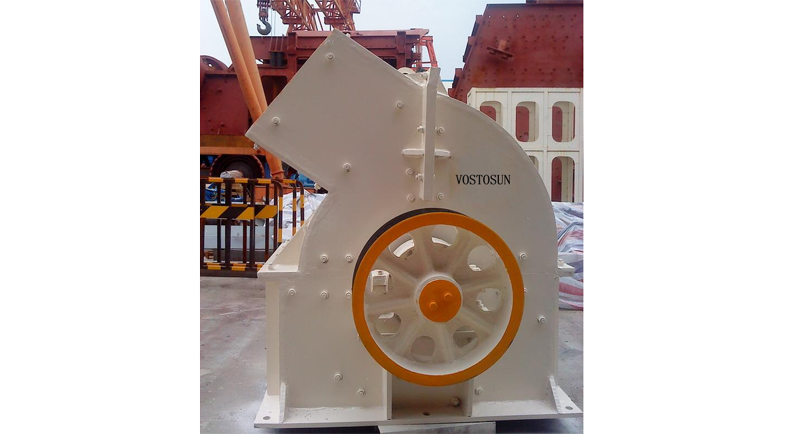

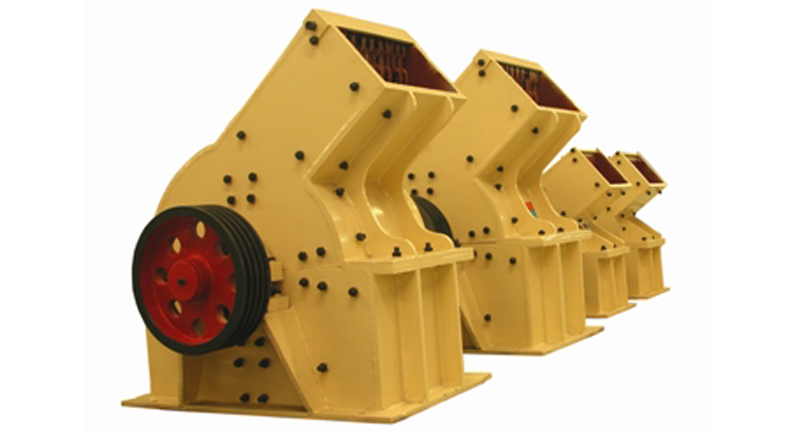

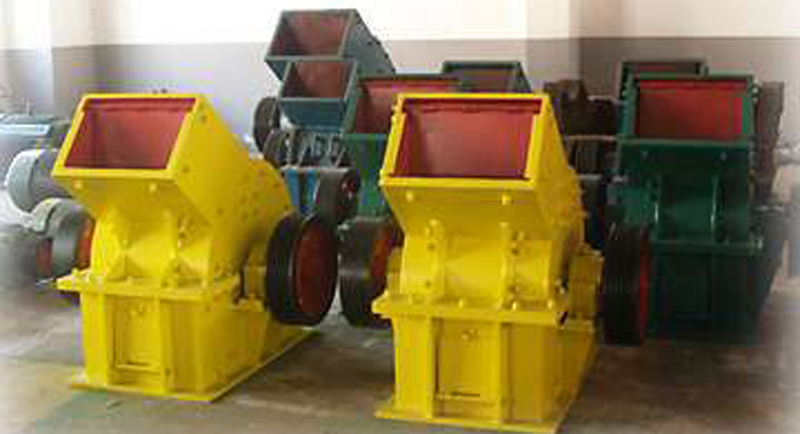

Hammer Crusher:
The hammer crusher (hammer mill) crushes through the collisions between high-speed hammer and materials. The hammer crusher (hammer mill) has good quality features like simple structure, high reduction ration, high efficiency, and etc. The PC hammer crusher (hammer mill) is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Operating principle of Hammer Crusher:
The motor drives the rotor rotated of the hammer crusher at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working chamber of hammers, they are crushed by the rotating hammers with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, while the large size products are brought back to the crushed area by the hammers for being recrushed until they reached the required size.

Main Technical Parameters of the Hammer Crusher:

Name	Max. feeding size (mm)	Output size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (kg)	Overall Dimension (mm)
PC400×300	≤100	≤10	5-10	11	800	812*982*785
PC600×400	≤120	≤15	5-25	22	1500	1055*1022*1122
PC800×600	≤120	≤15	20-35	55	3100	1360*1330*1500
PC800×1000	≤200	≤13	20-75	110	7900	2565*1720*2035
PC1000×1000	≤200	≤15	30-80	132	8650	2760*1820*2350
PC1300×1200	≤250	≤19	80-200	240	13600	2960*2010*2600
