Sand Washer is used for cleaning and removing the dirt and contamination mixed in sandstones. It features of novel sealing structure, adjustable overflow weir and reliable transmission system, which ensures washing and dehydrating efficiently.

It has been widely used in roads, water conservancy, construction, etc.

Features
Novel sealing structure
Adjustable overflow weir
Reliable transmission system

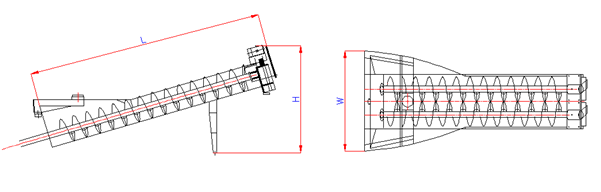

Structural Sketch

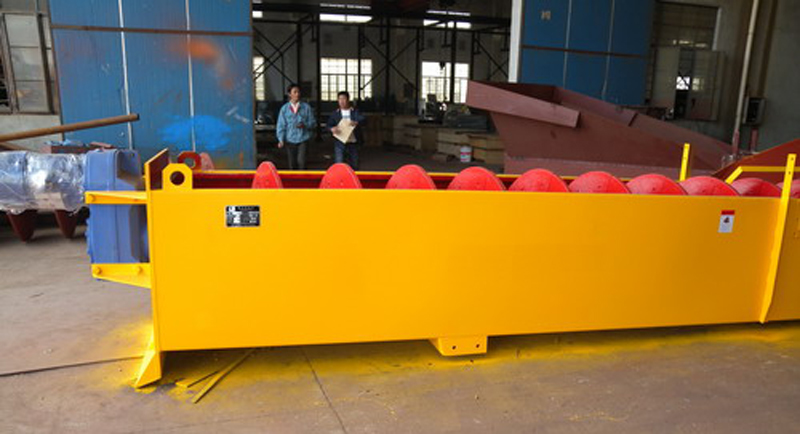

LSX Screw Type Sand Washer

Model	LSX-915	2 LSX -915	LSX -1115	2 LSX -1115
Number of Screw (pcs)	1	2	1	2
Screw Diameter(mm)	915	915	1115	1115
Tub Length(mm)	7585	7585	9750	9750
Max. Feeding Size(mm)	≦10	≦10	≦10	≦10
Capacity(t/h)	100	200	175	350
Screw Speed(rpm)	21	21	17	17
Motor Power(kw)	11	11×2	15	15×2
Water Consumption (t/h)	10-80	20-160	20-150	40-300
Weight(t)	6.2	11.5	10.9	17.8
Overall Dimension(mm)	8420×2950×1930	8420×3765×2030	10970×3945×4720	10970×5250×4720

XSD Wheel Type Sand Washer

Model	Diameter（mm）	Max. Feeding Size(mm)	Capacity (t/h)	Power (kw)	Overall Dimension(mm)	Weight(t)
XSD-2610	2600	≦10	50	5.5	3220×2125×2670	2.68
XSD-3016	3000	≦10	80	15	3800×2686×2800	3.26

Note: Specifications are subject to change without further notice.
