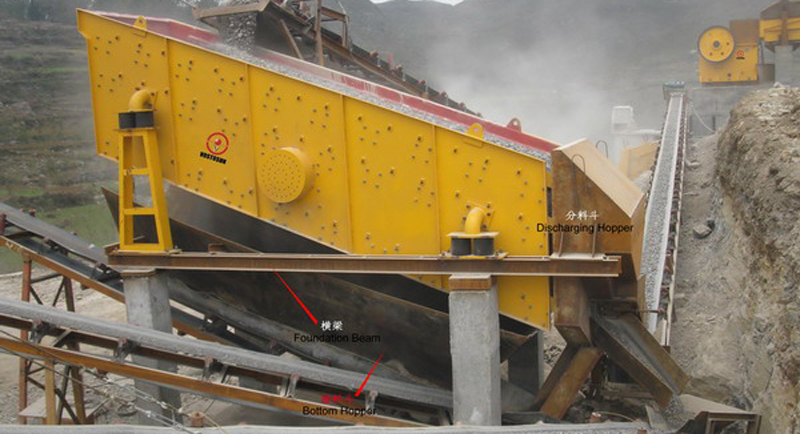

YA Series Circular Vibrating Screens are specifically designed for screening mineral stones at the working site.
This series feature of various models, novel structure, strong exciting force, large processing capacity, high screening ratio, little vibrating noise, completely new design, state-of-the-art manufacturing; all these features make this screen durable and easy for maintenance. This screen has been widely used in construction, transportation, energy, cement, mining and chemical industries.

Features:
Strong in vibration and powerful in processing capability;
High in efficiency and small in vibrating noise;
Durable in construction and easy in maintenance;
Main Technical Parameters.

Structural Sketch

Model	Double Ampli-tude (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (kw)	Vibrating Frequency (r/min)	Screen Specification (mm)	Total Weight (kg)	Dimension (L×W×H) (mm)
2YA1237	8	400	16-90	11	700-950	1200×3700	3300	4006×2250×2649
3YA1237	8	400	16-90	11	700-950	1200×3700	3600	4006×2250×3133
4YA1237	8	400	16-90	11	700-950	1200×3700	4000	4006×2250×3563
2YA1548	8	400	22.5-162	15	700-950	1500×4800	4200	5111×2585×3053
3YA1548	8	400	22.5-162	15	700-950	1500×4800	5000	5111×2585×3573
4YA1548	8	400	22.5-162	15	700-950	1500×4800	6100	5111×2585×4000
2YA1848	8	400	32-276	18.5	700-950	1800×4800	6500	5111×2947×3053
3YA1848	8	400	32-276	18.5	700-950	1800×4800	7100	5111×2947×3538
4YA1848	8	400	32-276	18.5	700-950	1800×4800	7800	5111×2947×3968
2YA1860	8	400	65-586	22	700-950	1800×6000	8100	6258×2947×3470
3YA1860	8	400	65-586	22	700-950	1800×6000	8500	6258×2987×3955
4YA1860	8	400	65-586	22	700-950	1800×6000	9100	6258×2967×4487
2YA2160	8	400	81-720	30	700-900	2100×6000	9780	6261×3467×3666
3YA2160	8	400	81-720	30	700-900	2100×6000	11800	6261×3467×4092
4YA2160	8	400	81-720	37	700-900	2100×6000	12000	6261×3467×4582
2YA2460	8	400	90-810	37	700-900	2400×6000	13600	6261×3767×3603
3YA2460	8	400	90-810	37	700-900	2400×6000	14200	6261×3782×4082
4YA2460	8	400	90-810	37	700-900	2400×6000	15000	6261×3782×4582

Note: Specifications are subject to change without further notice.
