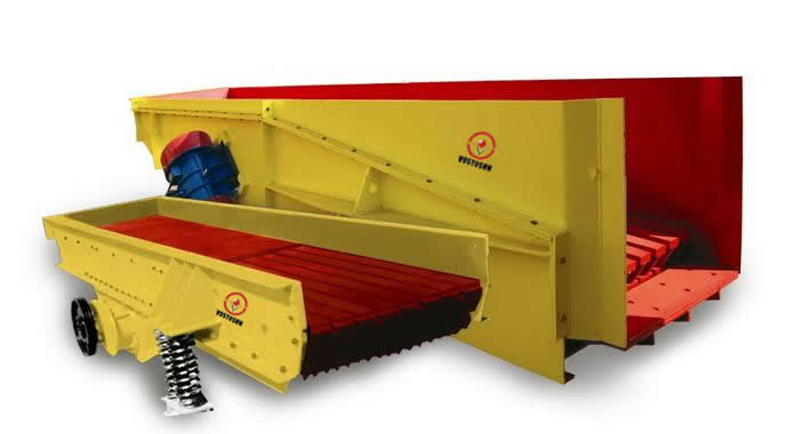

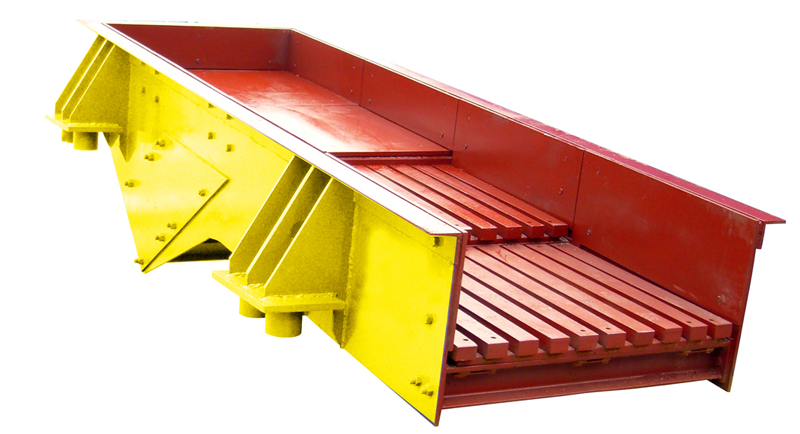

ZSW Series Vibrating Feeder is the latest type of super short linear vibrating feeder, designed specifically for feeding large lump of materials evenly before the primary crushers at crushing & screening station.

This series is various in models, solid in construction, impact-proof and reliable in operation. It can not only assure constant and even feeding, but also can screen the feeding materials, which can make the system more economical and rational. It is indispensable equipment in the screening & crushing production line.

Features:
The latest super short liner vibrating feeder;
Designed specifically for feeding large lump of materials;
It can screen the materials efficiently under the condition of guaranteeing continuous and uniform feeding.

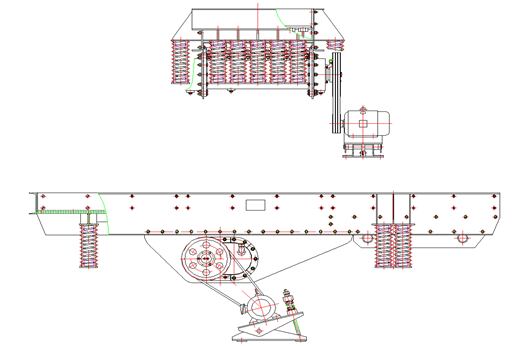

Structural Sketch

Main Technical Parameters of the Vibrating Feeder

Model	Max. Feeding Size (mm)	Capacity (t/h.)	Eccentric Shaft Speed (rpm)	Motor Power (kw)	Motor Qty. (pcs)	Installation Slope(º)	Overall Dimension (L x W x H)（mm）	Weight (t)	Chute Size
									( mm ×mm)
GZD-250×75	300	50-80		1.5x2	2	0-10	2580x1430x600	1.29	2500x750
GZD-300×90	450	80-100		2×3.0	2	0-10	3050×1430×1550	2.96	3000×900
GZD-370×100	500	100-150		2×3.7	2	0-10	3980×1878×866	3.70	3700×1000
GZD-490×110	580	120-280		2×5.5	2	0-10	5200×900×950	4.00	4900×1100
GZD-500×120	600	200-400		2×5.5	2	0-10	5450×2000×900	5.20	5000×1200
ZSW-380×96	500	100-160	500-720	11	1	0	3882×1684×1340	4.21	3800×960
ZSW-490×110	580	120-280	500-800	15	1	0	4957×1841×1365	5.41	4900×1100
ZSW-590×110	600	200-350	500-800	22	1	0	6000×2500×2150	6.05	5900×1100
ZSW-600×130	600	400-560	500-800	22	1	0	6028×2580×2083	7.50	6000×1300

Note: Specifications are subject to change without further notice.
