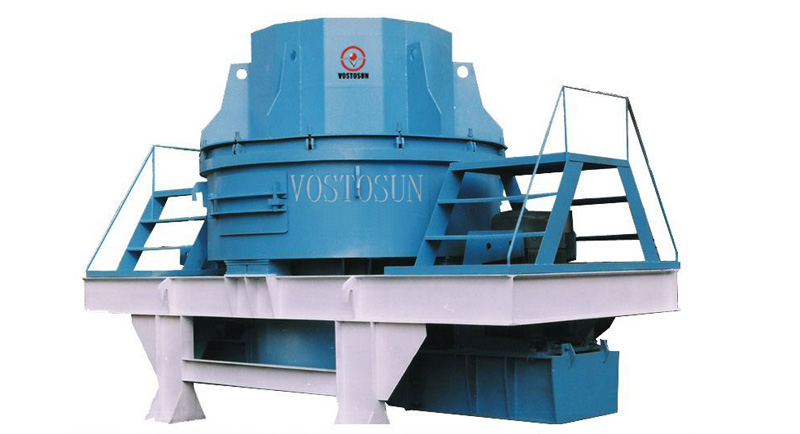

Sand Making Machine (namely PCL Vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Maker absorbed the advanced technology of the same products of Barmac Company of America, now is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL Vertical shaft impact crusher is widely used in all kinds of mineral, cement, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnetite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.

Working Principle of Sand Making Machine
Stone less than 50mm enters sand making machine though conveyor belt. Stone is crushed by hitting other stones. Material falls down to impel or cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times; finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine; however overlarge material will go back to sand maker to be recrushed. Output sizes can be made according to customer’s requirement. If input size is larger than the designed size, other crushing equipment will be necessary.

Characteristics of Sand Making Machine
Simple structure and low operating cost;
High efficiency and low consumption;
Sand Making Machine has the function of fine crush and crude grinding;
Slightly influenced by the moisture content of material, and the max moisture content is 8%;
More suitable for crushing mid-hardness and high-hardness materials;
Cubic shape of final products, high density of piling up and low iron pollution;

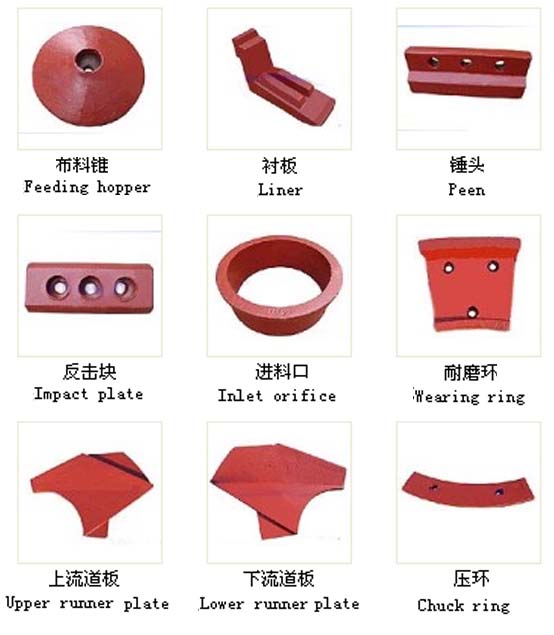

More wearable and easy maintenance;
Low working noise and light dust pollution.

Model	Max Feed Size (mm)	Power (kw)	Impeller speed (r/min)	Capacity (t/h)	Overall Dimensions (mm)	Weight (include motor) (kg)
PCL-450	30	2×22	2800-3100	8-12	2180×1290×1750	2650
PCL-600	30	2×30	2000-3000	12-30	2800×1500×2030	5600
PCL-750	35	2×45	1500-2500	25-55	3300×1800×2440	7300
PCL-900	40	2×75	1200-2000	55-100	3750×2120×2660	12100
PCL-1050	45	2×(90-110)	1000-1700	100-160	4480×2450×2906	16900
PCL-1250	45	2×(132-180)	850-1450	160-300	4563×2650×3716	22000
PCL-1350	50	2×(180-220)	800-1193	200-360	5340×2940×3650	26000
