PE Series Jaw Crusher features of great breaking ratio, uniform particle sizes, rational construction, reliable operation, easy maintenance and effective cost. It has been extensively used in many areas such as building materials, mining, chemical, metallurgical and water conservancy industries. This equipment is preferable to be selected as primary crushing machine for various materials with compressive strength up to 320 MPa.

Features:
Even final particles and highly crushing ratio;
Simple construction, reliable operation;
Easy maintenance, lower running cost.

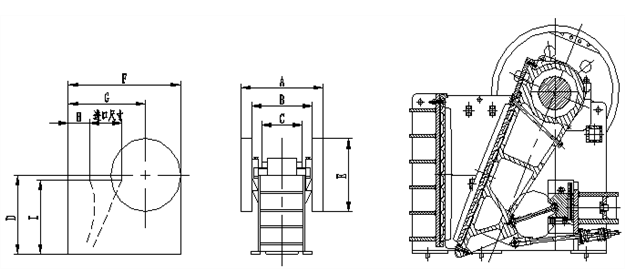

Structural Sketch

Main Technical Parameters of the Jaw Crusher

Model	Size of Feed Opening (mm)	Max Feeding Size(mm)	Adjustable Size of Discharge Opening(mm)	Capacity (t/h)	Power (kw)	Dimension (mm)	Weight (t)
PE-150×250	150×250	125	10-40	1-5	5.5	670×820×760	0.81
PE-150×750	150×750	125	10-40	5-16	15	1050×1490×1055	3.8
PE-250×400	250×400	210	20-60	5-20	15	1160×1300×1240	2.8
PE-400×600	400×600	340	40-100	16-65	30	1480×1710×1646	6.5
PE-500×750	500×750	425	50-100	45-100	55	1700×1796×1940	10.1
PE-600×900	600×900	500	65-160	50-120	75	2235×2269×2380	15.5
PE-750×1060	750×1060	630	80-140	52-180	110	2430×2302×3110	28
PE-900×1200	900×1200	750	95-165	140-450	130	3789×2826×3025	50
PE-1000×1200	1000×1200	850	100-235	315-550	130	3889×2826×3025	57
PE-1200×1500	1200×1500	1020	150-300	400-800	160	4590×3342×3553	100.9
PEX-250×750	250×750	210	25-60	15-30	22	1750×1500×1420	4.9
PEX-250×1000	250×1000	210	25-60	16-52	30	1940×1650×1450	6.5
PEX-250×1200	250×1200	210	25-60	20-60	37	1940×1850×1450	7.7
PEX-300×1300	300×1300	250	25-100	20-90	75	2285×2000×1740	11

Note: Specifications are subject to change without further notice.
