PF Series Impact Crusher is usually acted as medium crushing machine after coarse crushing. It is capable of crushing mineral rocks with compressive strength up to 320 MPa, featuring with greater processing capability and finer discharging particles. The crushed products are in cubic shape with low flakes and no internal cracks. This type of equipment is preferable to be selected as the first choice for crushing fine quality stone materials used for highway, water conservancy, airport, civil construction and other industries.

Features:
1. The combination of multi crushing chambers can make the product in uniform particle sizes, which are suitable for crushing hard rocks;
2. The bottom impact plate structure makes the crushed products smaller in cubic shape with no internal cracks;
3. These series have big feed opening which is more easily for disposing production lines;

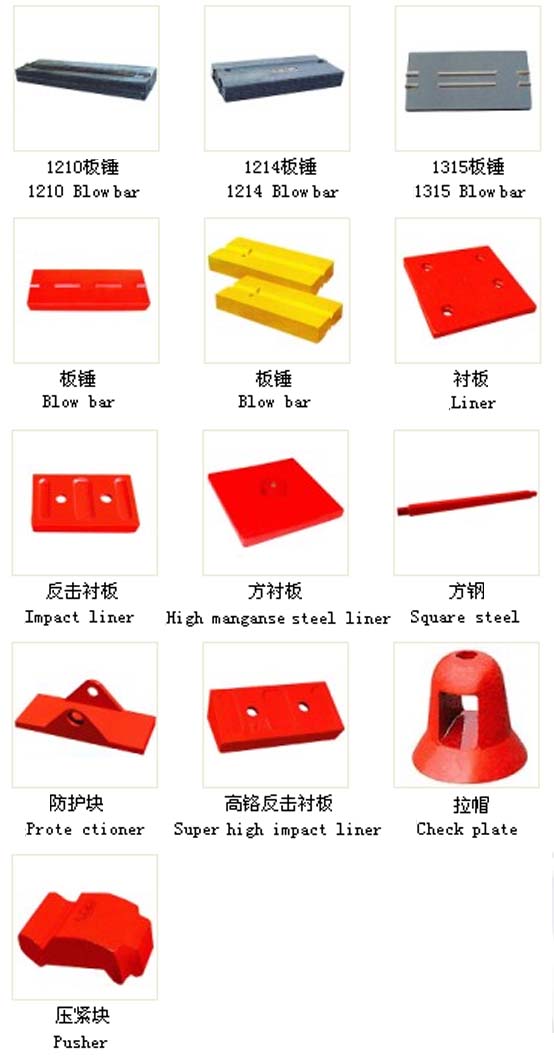

4. New type of high alloy abrasion material makes the service life of blow bars, impact plates, and liner plates longer.

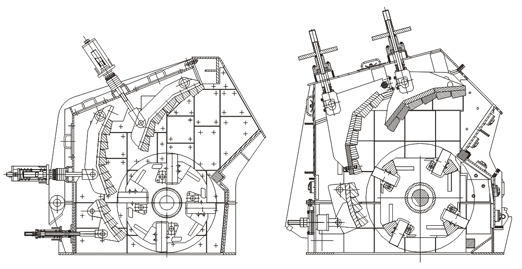

Structural Sketch

Main Technical Parameters

Model	Rotor Size (mm)	Feed Opening Size (mm×mm)	Max. Feeding Size（mm）	Capacity (t/h)	Motor Power (kw)	Overall Dimension (L×W×H)(mm)
PF-1007	φ1000×700	400×730	300	35-50	37	2113×14262×2380
PF-1010	φ1000×1050	1170×720	350	50-80	75	2532×1985×2196
PF-1210	φ1250×1050	1090×465	350	80-130	110	2690×2338×2890
PF-1214	φ1250×1400	1440×465	350	100-160	132	2690×2668×2890
PF-1315	φ1320×1500	1532×560	350	140-220	200	3096×3273×2667
PF-1515	φ1500×1500	1530×800	500	220-280	315	4950×3216×2970

Note: Specifications are subject to change without further notice.
